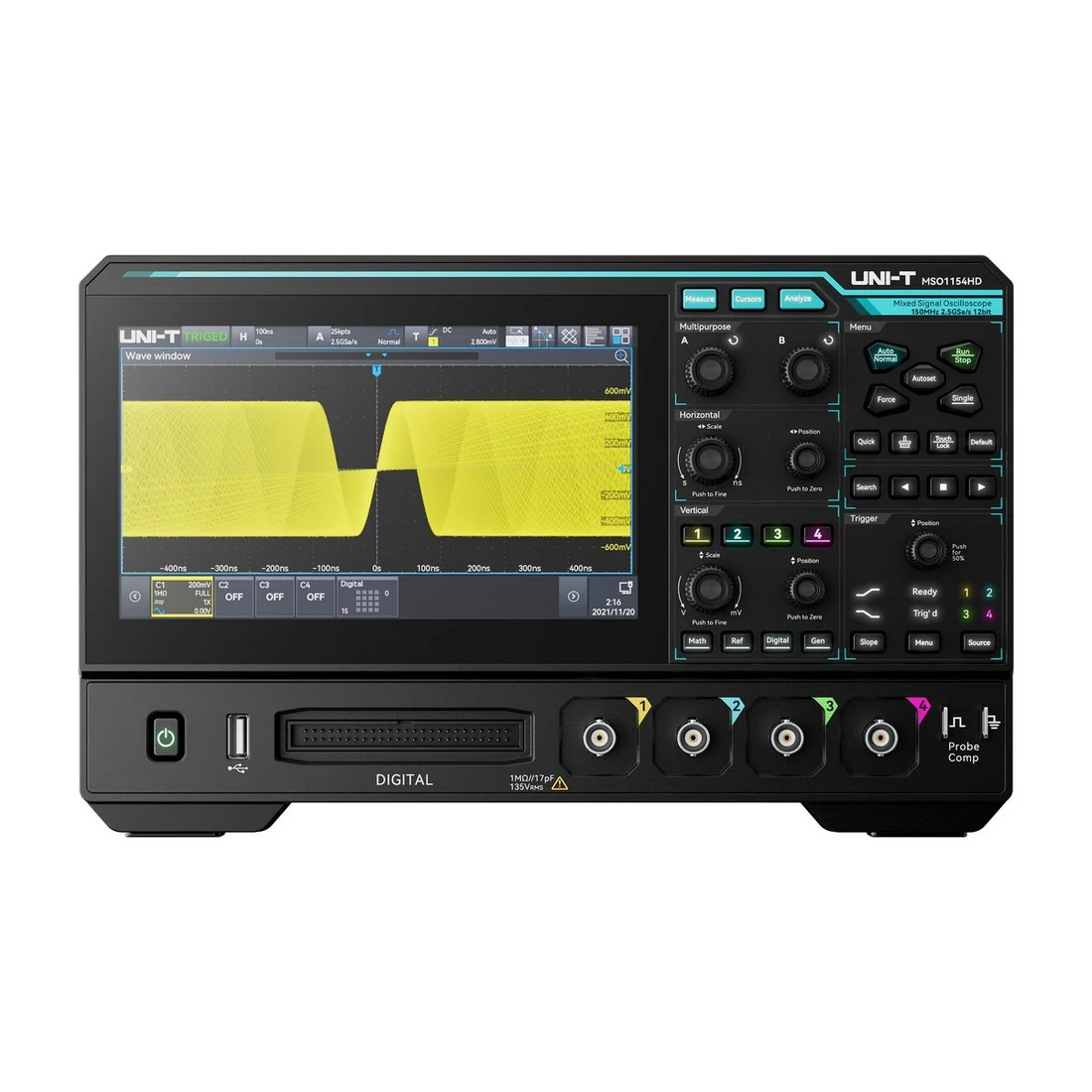

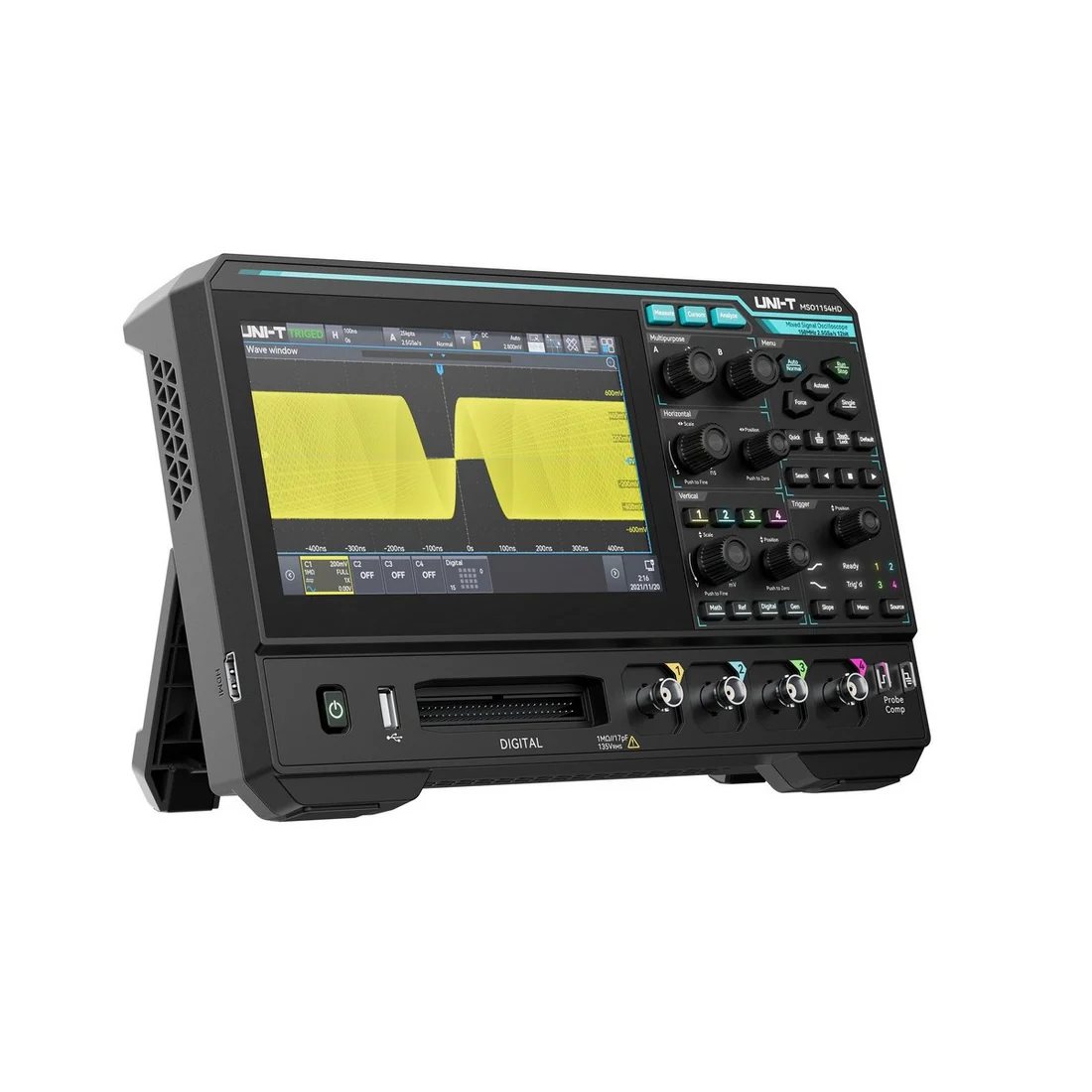

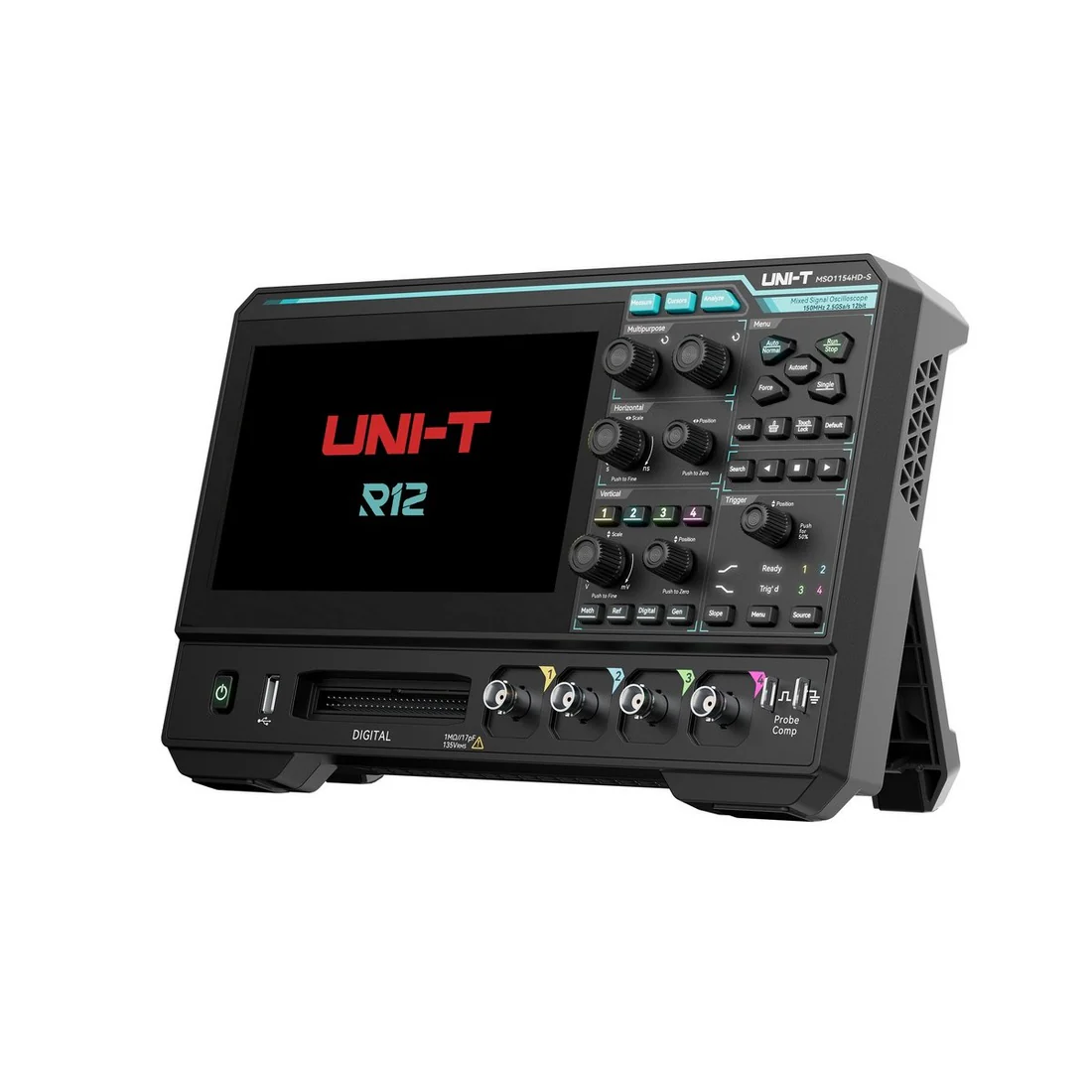

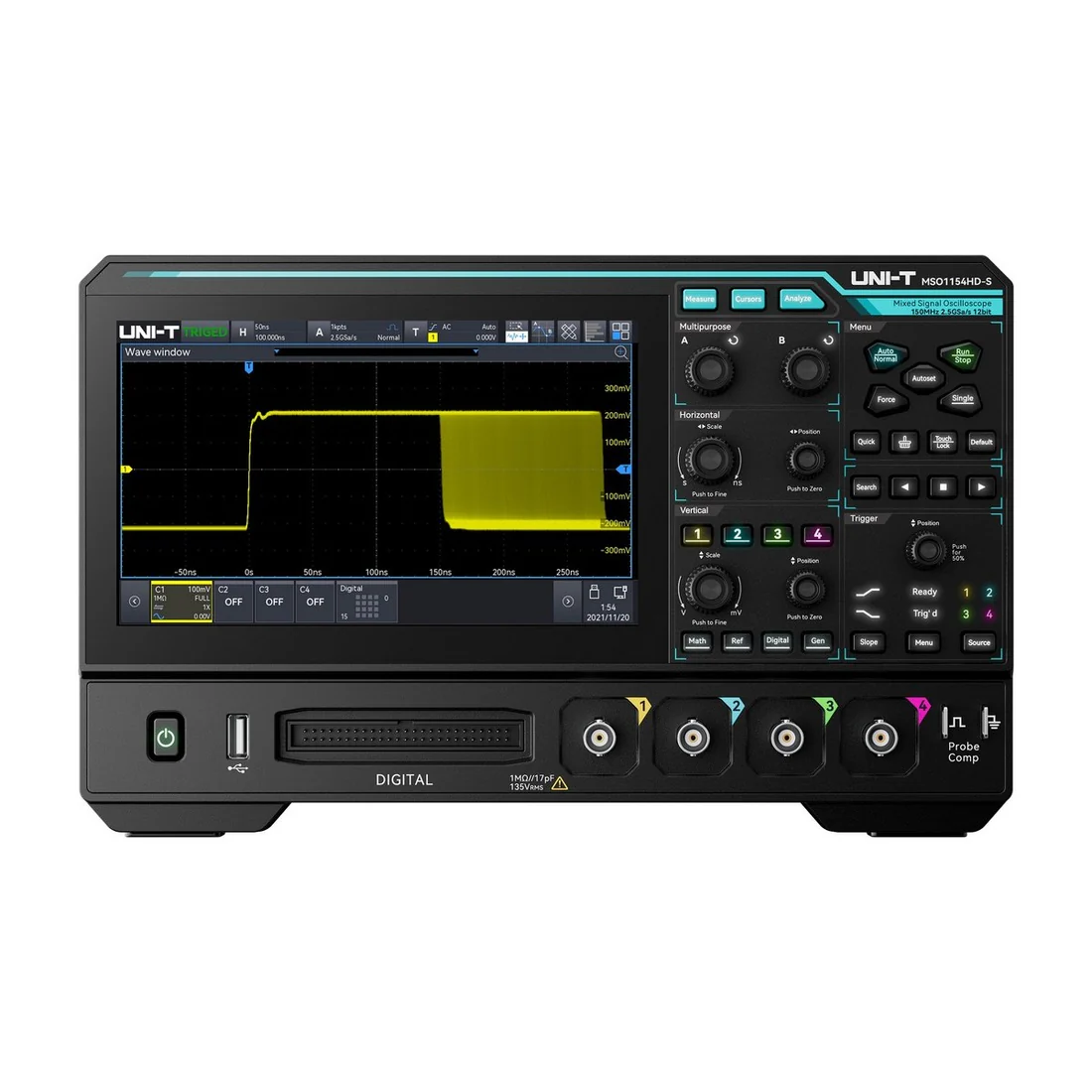

The MSO1154HD mixed signal oscilloscope is a 150MHz, 4-channel, 12-bit digital oscilloscope designed for embedded developers, hardware engineers, teaching labs, and professional electronics testing. Built with UNI-T’s native 12-bit ADC architecture, the MSO1154HD delivers 4,096 vertical levels for clearer signal detail compared to conventional 8-bit oscilloscopes.
With a real-time sampling rate of up to 2.5GSa/s and memory depth of up to 100 Mpts, the MSO1154HD allows users to capture fast edges, long signal sequences, startup behavior, communication transactions, and transient events with high accuracy. Its Ultra Phosphor 3.0 technology provides a waveform capture rate of up to 1,000,000 wfms/s, helping users detect glitches, timing errors, and rare signal anomalies more effectively.
The MSO1154HD integrates multiple test functions into one compact instrument, including oscilloscope, optional logic analyzer, spectrum analysis, protocol analysis, digital voltmeter, frequency counter, and power analysis. It also supports standard protocol decoding for RS-232/UART, I²C, SPI, RS-422, RS-485, CAN, CAN-FD, LIN, and Audio, making it suitable for embedded systems, automotive electronics, industrial communication, education, and R&D applications.
Key Features
- Bandwidth: 150MHz
- Channels: 4 analog channels
- Vertical Resolution: 12-bit native ADC
- Sampling Rate: Up to 2.5 GSa/s
- Memory Depth: Up to 100 Mpts
- Waveform Capture Rate: Up to 1,000,000 wfms/s
- Display Technology: Ultra Phosphor 3.0
- Logic Analyzer: Optional 16-channel logic analyzer support with UT-M26
- Protocol Decoding: RS-232/UART, I²C, SPI, RS-422, RS-485, CAN, CAN-FD, LIN, and Audio
- Automated Measurements: 56 types with statistics and trend graphs
- FFT Analysis: Built-in FFT up to 1 Mpts
- Power Analysis: Built-in 12-parameter power analysis
- Display: 7-inch capacitive touchscreen, 1024×600
- Connectivity: USB Host, USB Device, LAN, AUX Out, HDMI
- Warranty: 3+2 years as per brand policy
Why You Should Buy
The MSO1154HD oscilloscope is ideal for users who need high-resolution signal analysis, mixed-signal debugging, and protocol decoding in one compact instrument. Its 12-bit vertical resolution helps reveal small waveform details such as ripple, noise, gain compression, and low-level signal variations. With deep memory, fast waveform capture, and a responsive touchscreen interface, it is a practical choice for professional benches, electronics labs, engineering institutes, and embedded system development.
Applications
- Embedded Systems: Useful for microcontroller debugging, sensor interfaces, and IoT hardware testing
- Mixed-Signal Debugging: Supports optional 16-channel digital logic analysis for analog and digital signal correlation
- Protocol Testing: Suitable for UART, I²C, SPI, CAN, CAN-FD, LIN, RS-422, RS-485, and Audio bus analysis
- Power Electronics: Useful for ripple, switching loss, efficiency, and power-quality measurements
- Education: Ideal for engineering colleges, teaching labs, trade schools, and electronics training centers
- Research & Development: Suitable for product validation, circuit testing, and hardware design verification
- Industrial Electronics: Reliable for troubleshooting, maintenance, and production-level testing
For more information visit the official UNI-T website.
