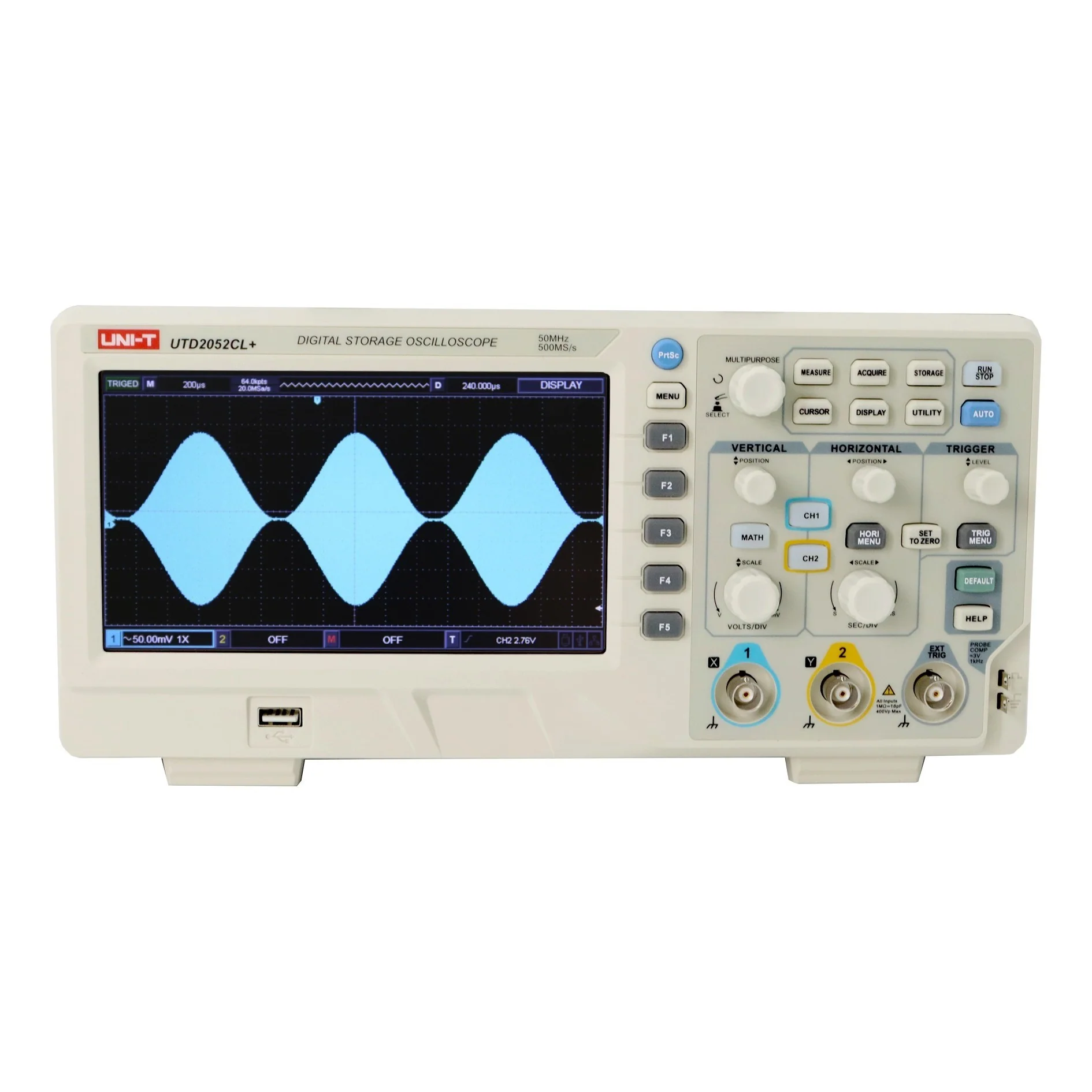

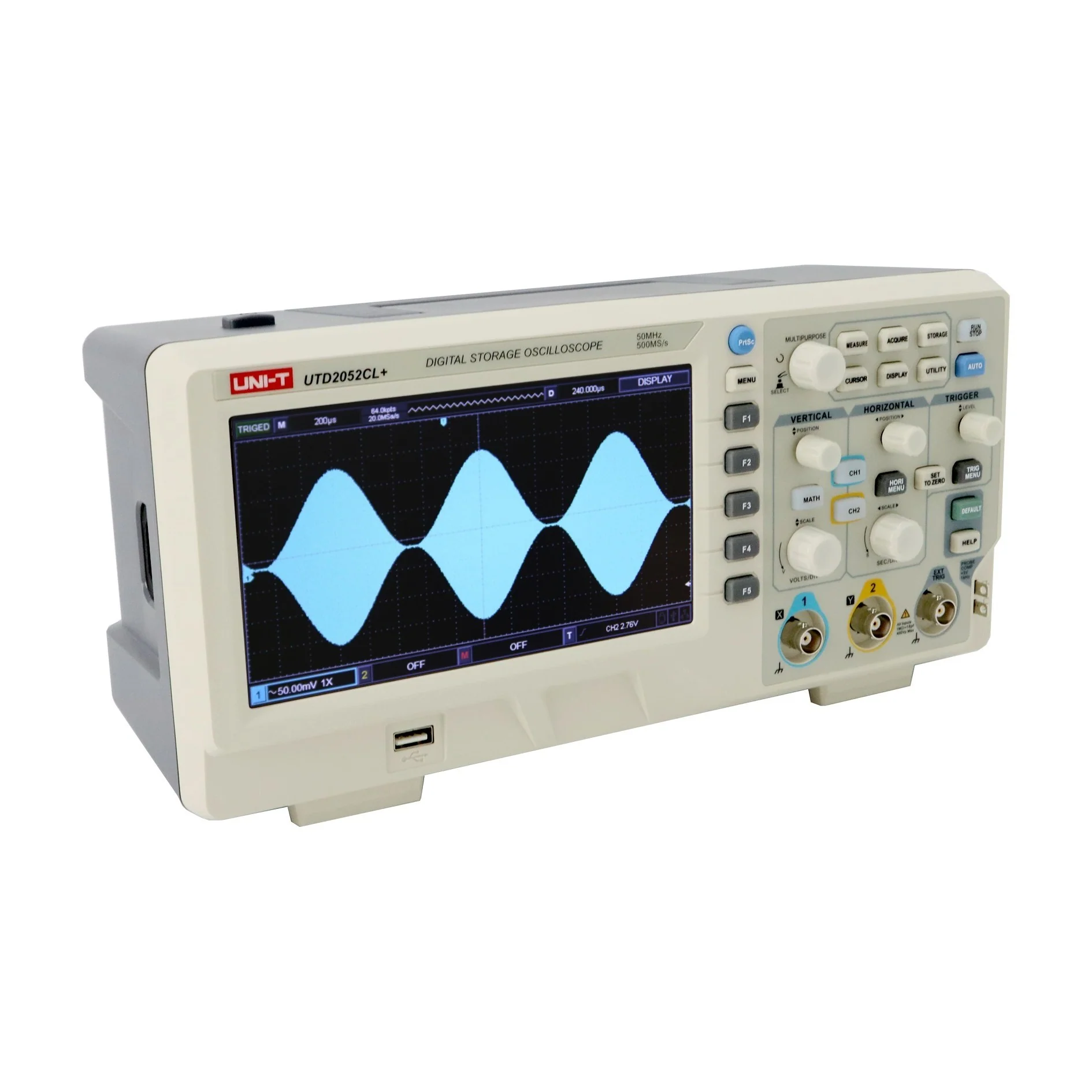

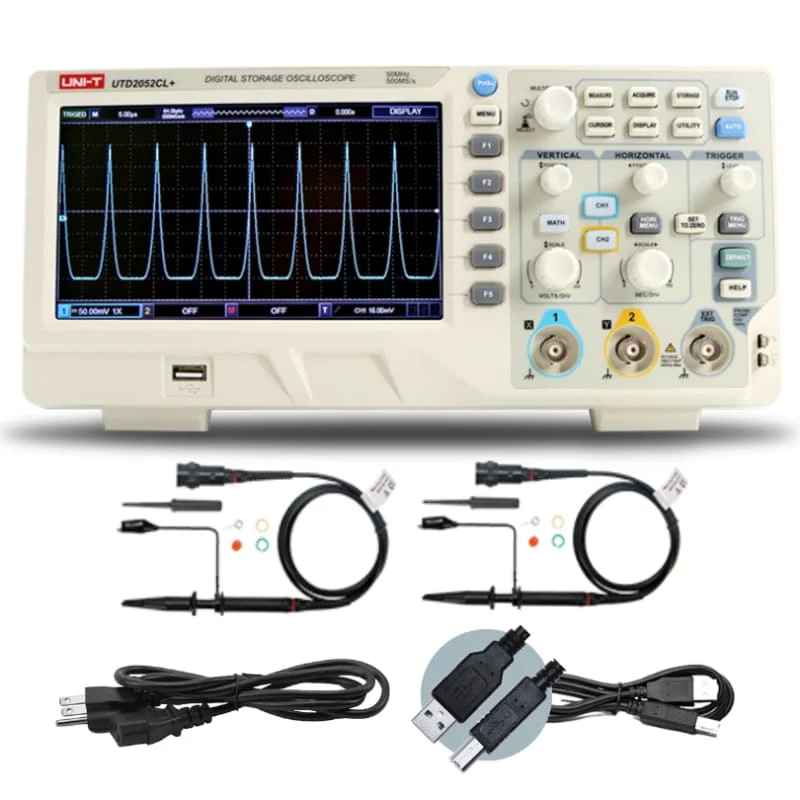

The UNI-T UTD2052CL+ Digital Storage Oscilloscope is a high-performance 2-channel bench oscilloscope designed for signal measurement, debugging, and waveform analysis in electronics laboratories, educational institutions, and industrial environments.
With an analog bandwidth of 50MHz and real-time sampling rate of 500MS/s, the oscilloscope captures and analyzes electronic signals with high accuracy. Its waveform capture rate of 5,000 waveforms per second ensures that transient or intermittent signals are quickly detected, helping engineers diagnose signal issues more efficiently.
101933a43db333bc6ccb97a906079
The oscilloscope features a 7-inch WVGA (800 × 480) TFT color display, providing a wide and clear visualization of signal waveforms. The large display area allows users to observe more waveform details and analyze signal behavior with greater clarity.
Equipped with 34 automatic measurement functions, the UTD2052CL+ simplifies signal analysis by automatically calculating parameters such as voltage levels, frequency, rise time, fall time, duty cycle, and more. This eliminates the need for manual calculations and speeds up testing workflows.
The instrument supports multiple trigger modes including edge trigger, pulse width trigger, slope trigger, video trigger, and alternating trigger, enabling precise waveform capture even in complex signal environments.
Advanced features such as FFT mathematical analysis, digital filtering, persistence display, and waveform zoom functions allow deeper signal investigation and more advanced diagnostic capabilities.
The oscilloscope also includes USB Host and USB Device interfaces, enabling waveform data storage, screenshot capture, and PC connectivity. Additional interfaces such as external trigger and pass/fail output allow integration into automated testing setups.
Designed for both teaching and professional applications, the UNI-T UTD2052CL+ provides reliable performance, intuitive operation, and comprehensive signal analysis tools, making it a valuable instrument for electronics design, troubleshooting, and laboratory experimentation.
Key Features
• 50MHz bandwidth digital oscilloscope
• 2 analog input channels
• 500MS/s real-time sampling rate
• Waveform capture rate up to 5,000 wfms/s
• 64kpts storage depth
• 34 automatic waveform measurement functions
• Multiple trigger modes: edge, pulse width, slope, video, alternating
• 7-inch WVGA TFT LCD display (800 × 480 resolution)
• FFT mathematical analysis and digital filtering
• Waveform persistence and zoom functions
• USB Host and USB Device interfaces for data storage and connectivity
• External trigger and Pass/Fail testing support
101933a43db333bc6ccb97a906079
Technical Highlights
Bandwidth: 50MHz
Channels: 2 Analog Channels
Real-Time Sampling Rate: 500MS/s
Waveform Capture Rate: 5,000 wfms/s
Storage Depth: 64kpts
ADC Resolution: 8-bit
Display: 7-inch TFT LCD (800 × 480 resolution)
Maximum Input Voltage: 400V peak
Input Coupling: DC / AC / GND
Interfaces:
• USB Host
• USB Device
• EXT Trigger
• Pass/Fail Output
101933a43db333bc6ccb97a906079
Applications
• Electronics circuit debugging
• Embedded system development
• Power electronics analysis
• Signal integrity measurement
• Educational laboratories and teaching
• Maintenance and troubleshooting of electronic equipment
• Industrial testing and product development
