Overview

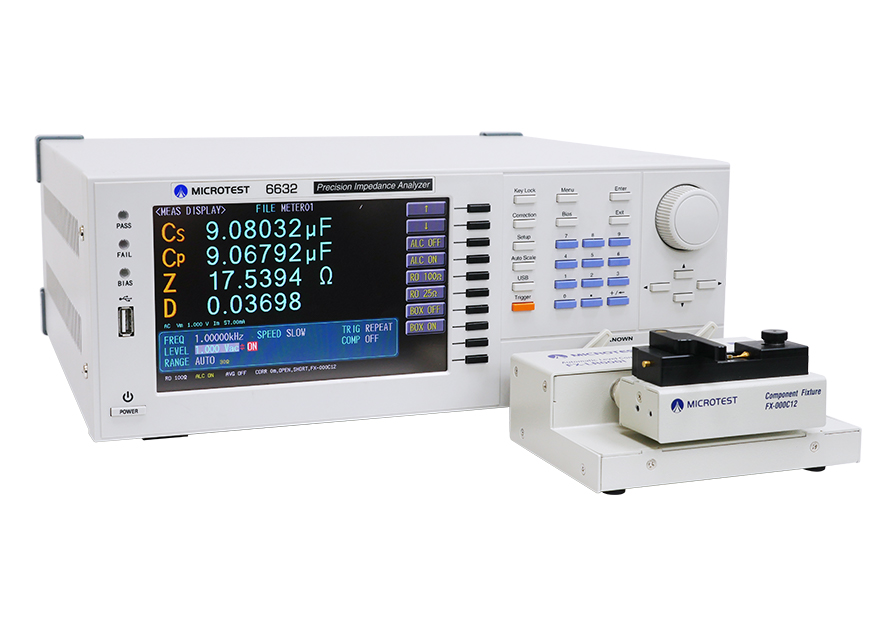

The Microtest 6632 / 6632S Impedance Analyzer is a precision impedance measurement system designed for detailed electrical analysis of electronic components and materials. It provides accurate impedance measurement across a wide frequency range, making it suitable for component characterization, material analysis, and laboratory research applications.
The analyzer supports measurement frequencies from 10 Hz up to 1 MHz, allowing engineers to evaluate component behavior across different operating conditions. Because of this capability, the system is widely used for testing capacitors, inductors, resistors, transformers, magnetic materials, and dielectric components.
Advanced Impedance Measurement
The Microtest 6632 series impedance analyzer supports comprehensive impedance measurement parameters used in component evaluation and electrical analysis.
- |Z| – Impedance
- |Y| – Admittance
- θ – Phase Angle
- X – Reactance
- R – Resistance (Series / Parallel)
- G – Conductance
- B – Susceptance
- L – Inductance
- C – Capacitance
- D – Dissipation Factor
- Q – Quality Factor
- DCR – DC Resistance
These parameters allow engineers to analyze impedance characteristics, energy loss, and component behavior with high precision.
6632S Enhanced Measurement Features
The Microtest 6632S Impedance Analyzer includes enhanced measurement functions designed for more advanced analysis and testing applications. These features improve flexibility in laboratory measurements and automated testing systems.
- Extended impedance analysis functions
- Improved measurement control and automation capability
- Advanced analysis for component and material evaluation
- Enhanced integration with automated testing platforms
As a result, the 6632S model is particularly suitable for advanced research laboratories and electronic component development environments.
Automation and System Integration

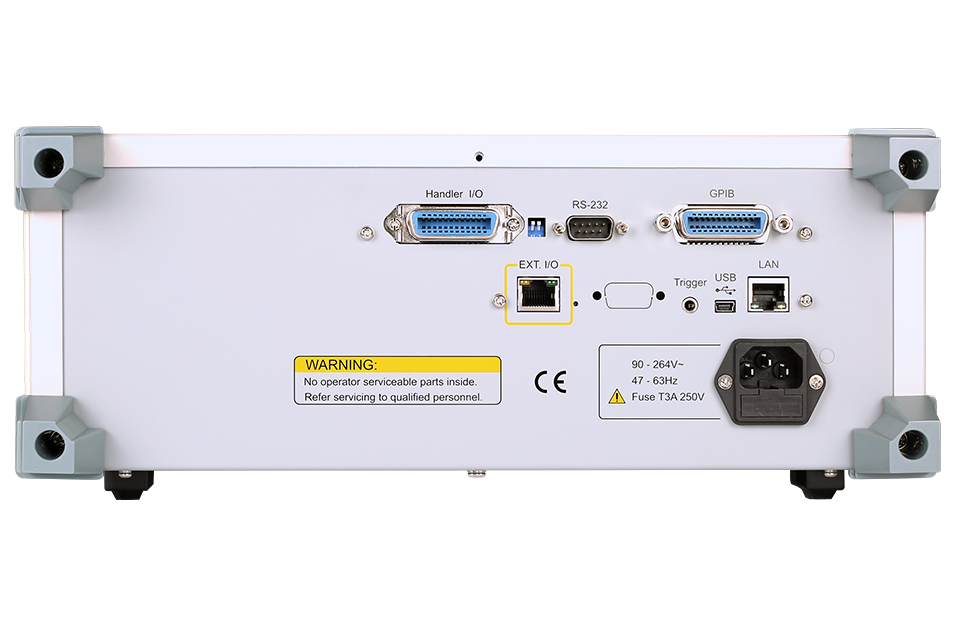

The Microtest 6632 series is designed for integration with automated test systems and laboratory measurement platforms. Multiple communication interfaces allow the analyzer to be connected with PLC systems and computer-controlled testing environments.
- LAN interface
- USB Host
- USB Device
- RS-232 interface
- Handler interface
Consequently, the analyzer can be easily deployed in automated component testing stations, laboratory setups, and production testing environments.
Typical Applications
- Capacitor and inductor characterization
- Electronic component impedance testing
- Magnetic material analysis

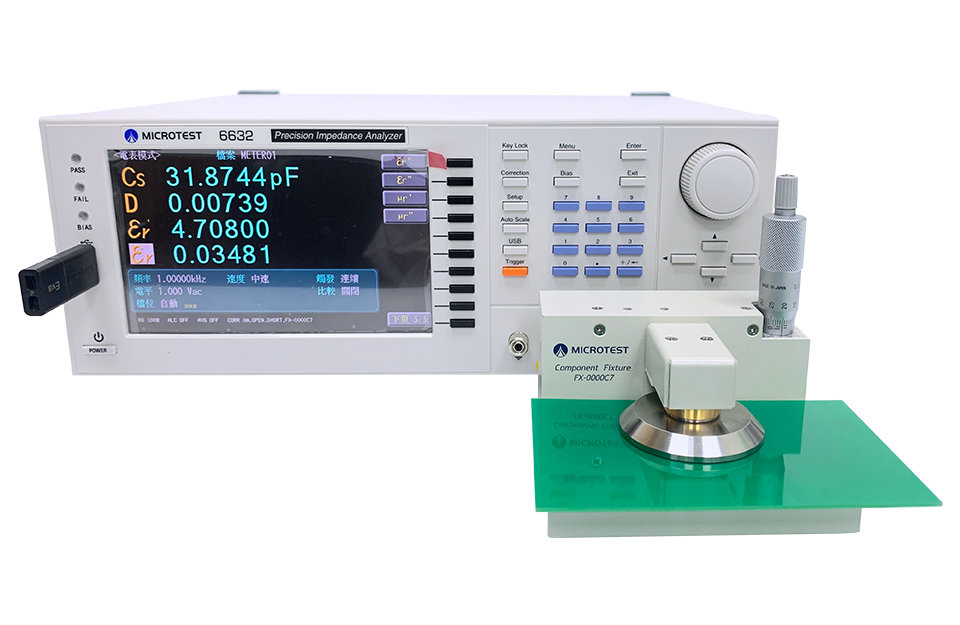

- Dielectric material evaluation
- Electronic component research and development
- Precision laboratory measurements
