Overview

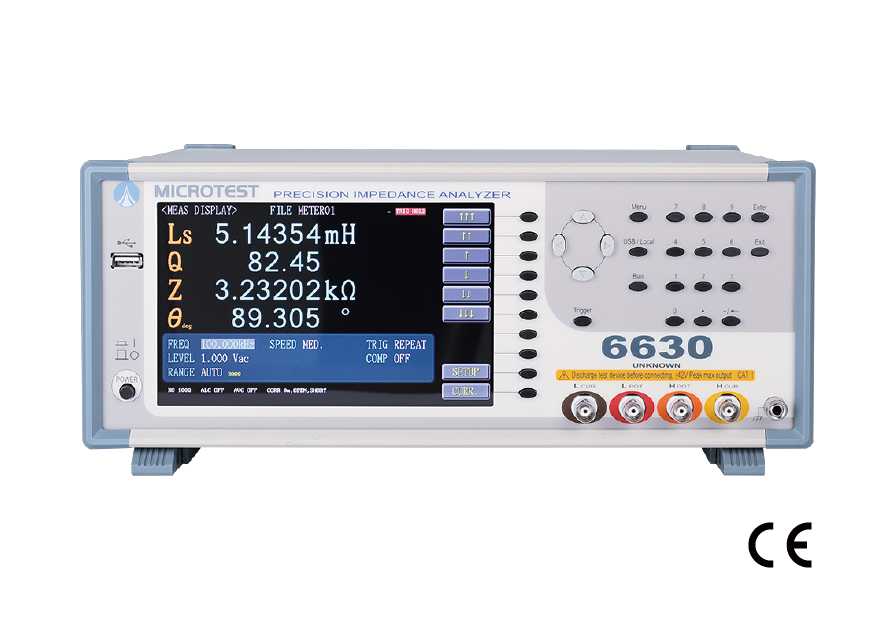

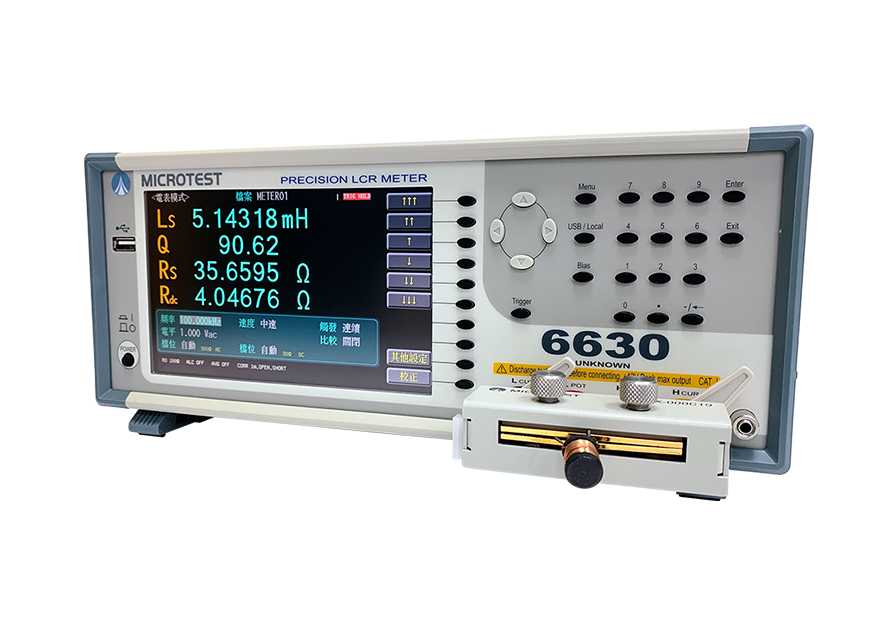

The Microtest 6630 Series High Frequency LCR Meter is a precision impedance measurement instrument designed for component characterization, material analysis, and automated production testing. This High Frequency LCR Meter series supports frequencies from 10 Hz up to 50 MHz, making it suitable for testing modern electronic components used in high-frequency circuits, power electronics, and magnetic devices.
In addition, the instrument provides ±0.05% basic measurement accuracy and ultra-fast <3 ms measurement speed, enabling reliable and repeatable measurements in both laboratory environments and high-throughput manufacturing lines. Because of this performance, the Microtest 6630 High Frequency LCR Meter is widely used for testing inductors, capacitors, transformers, magnetic components, and dielectric materials.
Available Frequency Models
To support different testing requirements, the High Frequency LCR Meter series is available in multiple frequency configurations:
| Model | Frequency Range |
|---|---|
| 6630-1 | 10 Hz – 1 MHz |
| 6630-3 | 10 Hz – 3 MHz |
| 6630-5 | 10 Hz – 5 MHz |
| 6630-10 | 10 Hz – 10 MHz |
| 6630-20 | 10 Hz – 20 MHz |
| 6630-30 | 10 Hz – 30 MHz |
| 6630-50 | 10 Hz – 50 MHz |
Measurement Capabilities
The Microtest High Frequency LCR Meter supports a comprehensive range of impedance measurement parameters, allowing engineers to perform detailed electrical analysis of components and materials.
- Impedance (|Z|)
- Admittance (|Y|)
- Phase Angle (θ)
- Reactance (X)
- Resistance (Series / Parallel)
- Conductance (G)
- Susceptance (B)
- Inductance (L)
- Capacitance (C)
- Dissipation Factor (D)
- Quality Factor (Q)
- DC Resistance (DCR)
- Equivalent Series Resistance (ESR)
- Relative Permittivity (εr)
- Relative Permeability (μr)
Key Features for Production Testing
Furthermore, the High Frequency LCR Meter includes several advanced features designed to support automated testing and production environments.
- Automatic Level Control (ALC) for stable test signals
- Selectable 25Ω / 100Ω output impedance
- Meter Mode for standard measurements
- List Mode for automated multi-step testing sequences
- Comparator and BIN sorting for production classification
- Open / Short / Load correction for improved measurement accuracy
System Integration and Connectivity

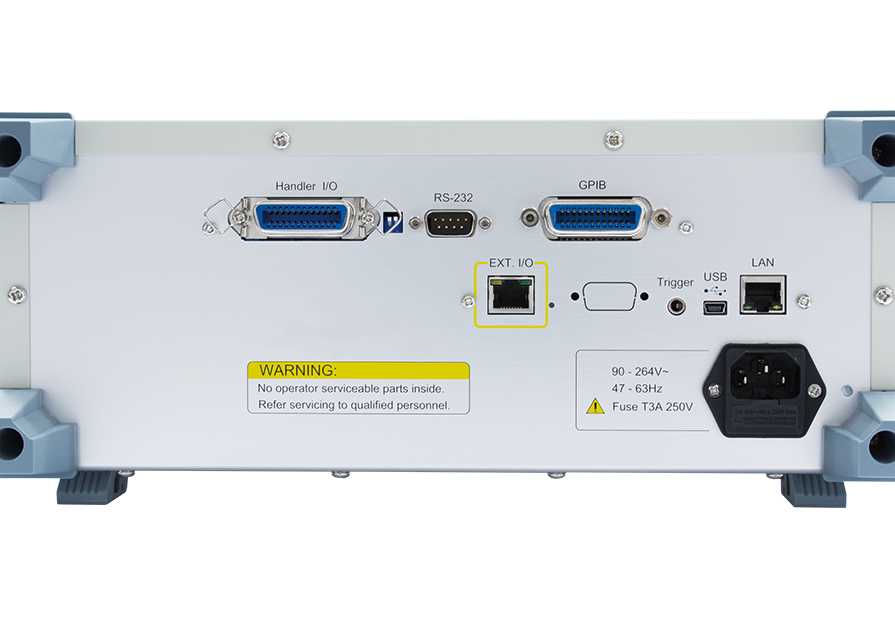

Finally, the Microtest 6630 High Frequency LCR Meter is designed for seamless integration into automated testing systems. The instrument includes LAN, USB Host, USB Device, RS-232, and Handler interfaces, enabling communication with PLC systems, automated test fixtures, and computer-controlled measurement platforms.
As a result, the system can be easily deployed in automated production lines, quality control laboratories, and advanced electronic testing environments.
Typical Applications
- Inductor and transformer testing
- Capacitor characterization and ESR measurement
- Magnetic and dielectric material analysis
- Automated component production testing
- Electronics manufacturing quality control
- Research and development laboratories
