Overview
The Microtest 5265 Transformer Tester is a precision automatic transformer tester designed for fast and reliable testing of transformers, inductors, coils, and other magnetic components. This Transformer Tester is widely used in electronics manufacturing, motor production, and transformer assembly lines where accurate electrical parameter measurement and automated production testing are required.
Furthermore, the Microtest 5265 Transformer Tester supports multiple electrical parameter measurements within a single test sequence, allowing manufacturers to verify transformer performance quickly and consistently. Because of its automated testing capabilities and high-speed measurement performance, the instrument is well suited for both laboratory testing and high-volume production environments.
Comprehensive Transformer Testing Functions
The Microtest 5265 Transformer Tester supports a wide range of transformer measurement functions, allowing engineers and production teams to perform complete electrical verification of transformer windings and magnetic components.
- Turns Ratio (TR)
- Inductance (L)
- Leakage Inductance (LK)
- DC Resistance (DCR)
- Capacitance (C)
- Quality Factor (Q)
- Dissipation Factor (D)
- Phase Angle (θ)
- Impedance (Z)
As a result, the 5265 Transformer Tester allows manufacturers to identify winding faults, insulation issues, and parameter deviations before components move further along the production line.
Designed for Automated Production Testing
In addition, the Tester includes several features specifically designed for automated manufacturing environments.
- High-speed automated transformer testing
- Multi-step test sequences for production workflows
- Comparator and BIN sorting for automatic pass/fail classification
- Programmable test conditions for different transformer designs
- Internal storage for test setups and configurations
Therefore, the system enables efficient batch testing and consistent quality control during transformer production.
System Integration and Connectivity

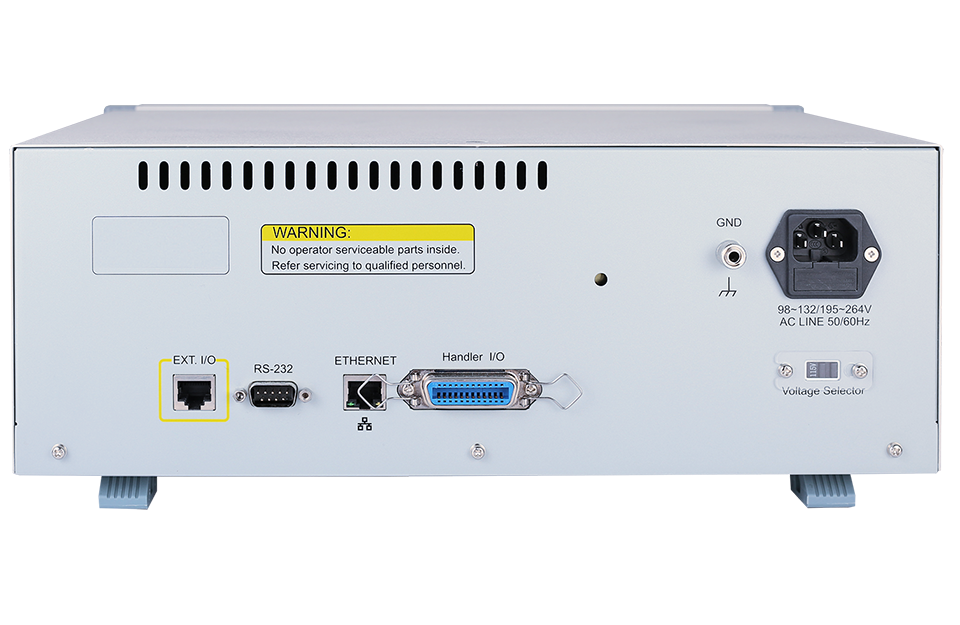

The Microtest 5265 Transformer Tester is also designed for seamless integration with automated test fixtures and production equipment. The instrument includes multiple communication interfaces that allow easy connection with factory automation systems.
- LAN interface for network communication
- USB Host and USB Device connectivity
- RS-232 interface for instrument control
- Handler interface for automated production lines
Consequently, the instrument can be easily integrated into automated transformer production lines, test stations, and quality inspection systems.
Typical Applications
- Transformer manufacturing and testing
- Inductor and coil testing
- SMPS transformer production
- Automotive magnetic component testing
- Electronic component quality control
- Research and development laboratories
